Durable design that is easy to install after part setup

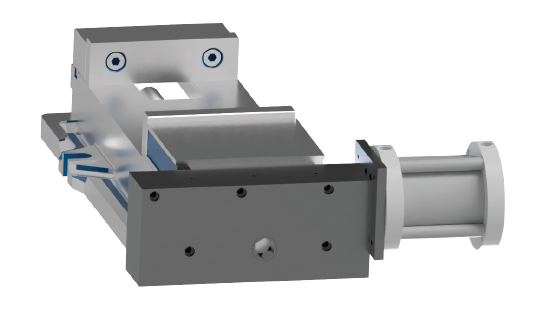

Computer generated design of actuator

The Pneumatic Vise Actuator is designed for efficient operation and reliability in lights out operations. It delivers repeatable pressure with a substantial 53 ft-lbs of torque when supplied with 100 PSI of air pressure, ensuring robust gripping force for secure part clamping.

Featuring a generous 229 degrees of rotation, the actuator offers versatility in positioning and accommodating various workpiece sizes.

Input Pressure (PSI) Closing Torque (ft-lbs) Opening Torque (ft-lbs) Vise Pressure (PSI)
20 10.8 11.8 906.6
40 21.5 23.6 1813.1
60 32.3 35.3 2719.7
80 43.1 47.1 3626.2
100 53.8 58.9 4532.8
120 64.6 70.7 5493.3

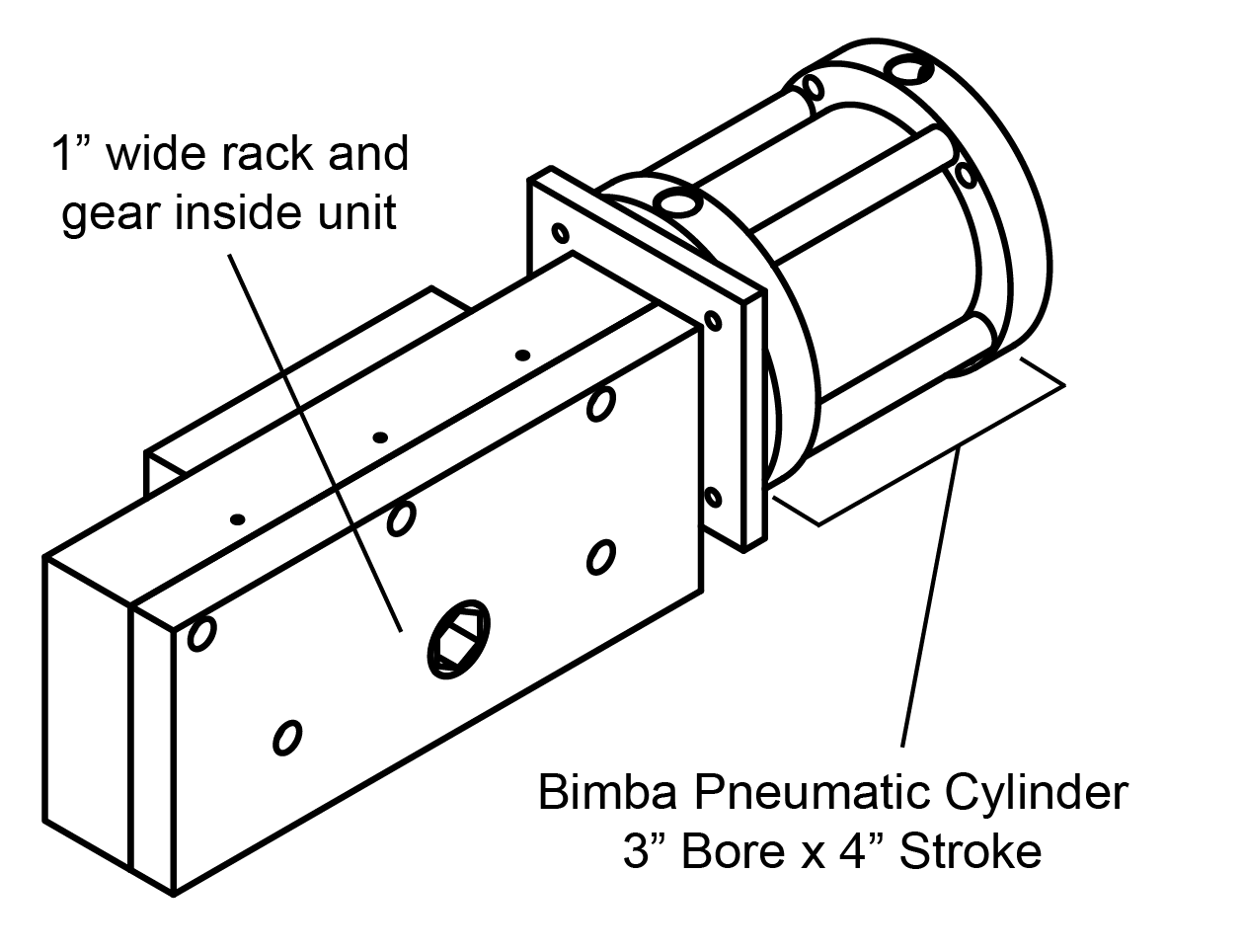

diagram
Dimensions of Actuator

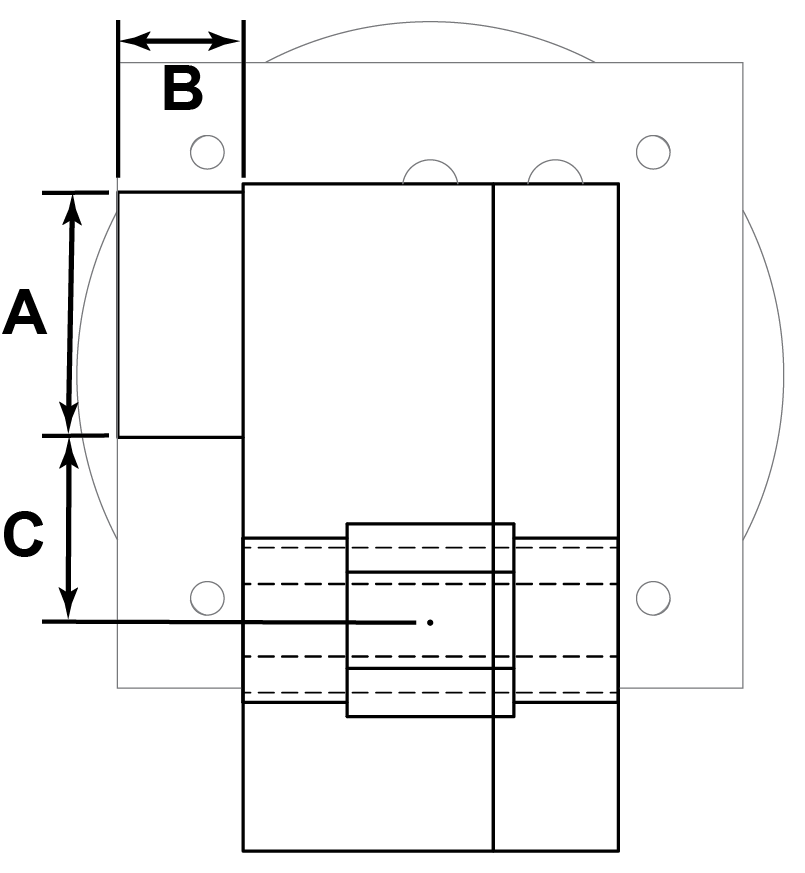

Block Dimensions Based on Vise Brand

Block Dimensions
Vise A B C (Vise Center to Top)
Kurt DX6 1.45" 0.75" 1.126"
Kurt D688 1.24" 0.75" 1.335"
Kurt 360 1.69" 0.75" 0.937"
Haas 1.24" 1.0" 1.335"
